Key Features |
-
Generates time codes from a reference input
-
Multi-format reference input
-
Many Output Options
-
Small size ,stand alone box
|
Introduction
Many of our products have time code options such as NTP,
IRIG-B, NMEA0183 and BCD to name a few. These
options use our TCG1000 card and now this card is
available as a stand alone model.
Detailed Description
The TCG1000 accepts various types of reference inputs
and generates accurate time codes from the reference
input.
The reference inputs include the following:
From the reference input the following time codes can be
generated:
Options
Many options are available such as a programmable relay.
The relay can either be a normally closed or normally
open contact and can be scheduled to operate on an
event.
Software
WinDiscover software is supplied for free which enables
automatic discovery of NTP clocks attached to a network
without having to change the PC's networking
configuration.
The TCG1000 can be configured via the Ethernet port of a
PC. It supports DHCP/BOOTP for automatic
acquisition of network address, nameservers and time
server configuration.
Networking parameters such as time zone/daylight saving
can also be configured.
The configuration is saved in non-volatile memory and
units can be password protected.
Mechanical

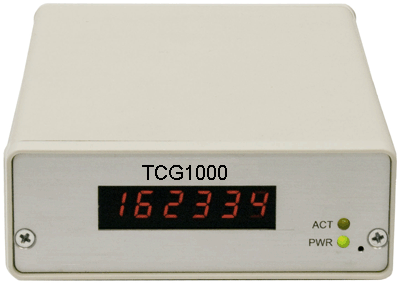

The TCG1000 is supplied in a aluminum case measuring 172
x 105 x 38 mm and weights less than 500 grams.
Miscellaneous
The TCG1000 is powered from a 12-30 V DC input or an AC
adapter type power supply can be provided. It
consumes less than 10W and is CE marked for sale in the
EU.
|
