12 Digits
Resolution & 6 GHz Frequency Measurement
|
| The

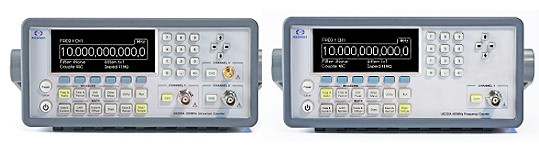

U6200A universal counter, whose production
procedures conform to ISO 9004, has frequency

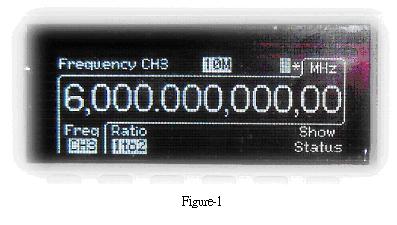

resolution of 12 digits per second (Figure-1),
40 ps time interval
resolution and a complete set of test and
analysis features. The standard U6200A’s CH3
comes with the range from 375 MHz to 6GHz
and the standard CH 1
& 2
from 1 mHz to 400 MHz. |
|
|
| |
Great
Features for Universal Purposes
|
| The
U6200A also provides great features including
Frequency
& Ratio (11Digits/Sec.),
Time interval,
Period (2.5 ns to 1000s),
Duty Cycle, Pulse Width, Rise/Fall Time,
Peak Volts (100 Hz~300 MHz),
Phase,
Totalize, Temperature Stability (< 1 PPM), Aging
Rate (< 2 PPM per year), timebase reference
channel (Figure-2) and complete Front-End
Isolation. Moreover, it offers 20 memories
(Figure-3) for storing frequently-used
operations. |
|
|
| |
Full Math
Functions & Easy Operation Panel
|
| The
U6200A offers built-in statistics and math
functions. Users can do measurements,
simultaneously measure, count in mean, min/max,

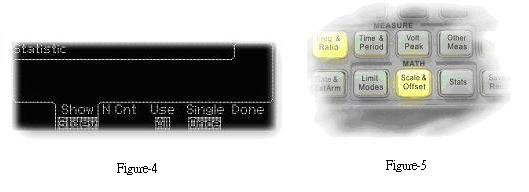

delta & standard deviation (Figure-4). And scale
& offset can be easily used for compensation
purpose according to users’ applications. In
addition, to reach these measurements, user can
easily use the numeric buttons to define
settings. Moreover, the U6200 also provides
users the visible light buttons as functions are
working (Figure-5). |
|
|
| |
Fast
Measurement & Special Application
|
| The
U6200A supports real-time digital signal
processing technology, which is applied to
analyze data as simultaneously getting new
readings and speeding measurement. The “Limit
Modes” is worth to be mentioned, i.e. users can
set margin according to their specific
measurements, and via Go-On or Stop and
USB
Output settings
(Figure-6), the U6200A can be keep or stop
measuring as a limit is exceeded, and
generate an output signal to trigger external
devices.
|
|
|
| |
Free
Software & Familiar SCPI Commands
|
| Users can

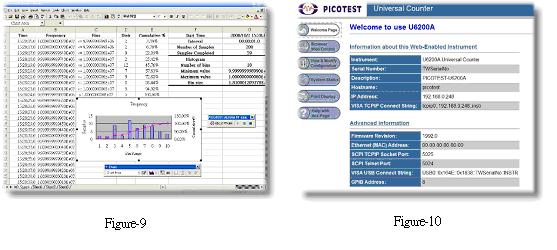

get data logs (Figure9) by PC software
(Microsoft Excel®) via a USB, or an optional
GPIB interface. Furthermore, U6200A supports a
webserver function, so users can easily control
it via a LAN interface (Figure 10) by inputting
an Ethernet address (Default: 192.168.0.247) on
web browsers. In addition, by the SCPI commands
compatible to Agilent 53132A, the U6200A can
provide familiar syntax string for users’
applications. For more command information,
please refer to the U6200A User’s Manual in
Chapter 7. |
 |
| |

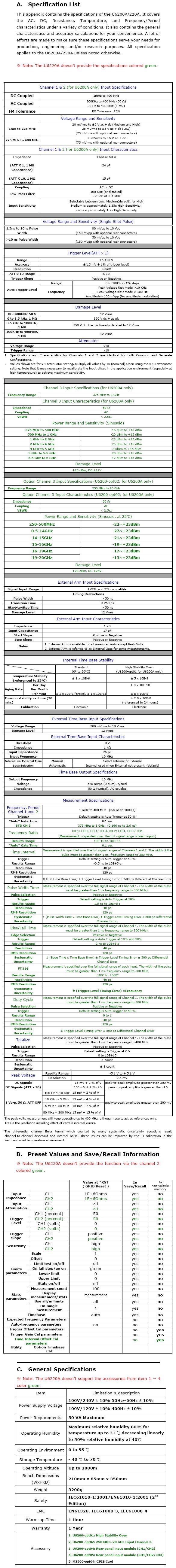

U6200A/220A
Specifications:
|
|
|
