The GSM2x8 is a GSM Remote
Control and Alarm Module. It allows you to use a
normal GSM mobile phone to monitor and control an alarm or
remote station by sending and receiving text or sms messages.
Features:
- Eight Alarm logic Inputs.
If any input is triggered a text (sms) is sent to a
pre-designated mobile phone number.
- Eight relays. Any
relay can be closed by sending a text to the unit
- Mobile phone can read
digital input status
- Up to eight different
mobile phones numbers can be stored in the system.
- Password protected.
Prevents unauthorised use.
- Also any other mobile
phone can communicate with the system as long as the
password is known by that phone.
- Each logic input can be
assigned to one or more phones.
- Built in GSM quad band
telephone modem.
- Can be set up and
programmed from any GSM phone located anywhere in the world
(GSM must be available in that country)
- IP65 enclosure.
- Only extra item needed is
a standard SIM card obtainable from your service provider,
or from Precision Test Systems.
Logic Inputs
The GSM2x8 continually
monitors eight logic inputs. If any logic input changes,
the GSM2x8 will send a text to a pre-designated GSM mobile
phone indicating what one of the logic inputs has been
triggered.
Alternatively any mobile phone
can call the unit and read the digital inputs. The device
is password protected, so only authorised uses can access the
system.
Relays
Eight normally open relays can
be independently switched by sending a text. Or the unit
can be programmed so that one relay is automatically activated
from a logic input.
Applications
The GSM2x8 has multiple uses
including:
- Alarm System.
Automatic notification to your mobile phone, when an
alarm is raised.
- Vending Machine
- Pumping Stations
- Buildings and Real Estate
- Weather Stations
- River Monitoring and
Flood Control
- Transport and Vehicle
monitoring.
Benefits
- More flexible than paging
systems
- Low set up and running
costs
- Faster response to alarms
and process disturbances.
- Allows reduced manning
levels
- Provides more detailed
information
- Allows full remote
control
General

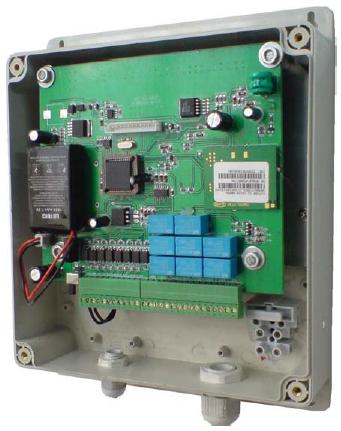

The GPS2x8 is housed in a IP65
rated case. An optional LCD shows status of the system.
The GPS2x8 is powered from
90-260 VAC, or +12V AC or DC. An internal battery powers the
unit if the primary power fails for a short period.
A GSM Antenna is supplied as
standard. Alternatively an optional remote antenna can be
connected for areas with poor reception.
Connect Precision Test Systems
for more details and a price quote. |
