Great
Performance for Functions and Waveforms
|
| G5100A

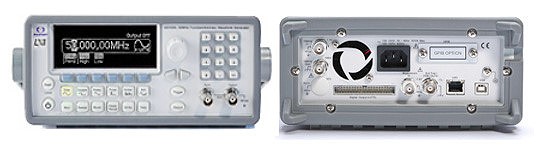

50MHz Function / Arbitrary Waveform Generator
can create stable, precise, clean and low
distortion sine waves by using DDS (Direct
Digital Synthesis) Technology. With fast rise
and fall times up to 25 MHz for square waves and
200KHz for linear ramp waves , the G5100A also
can reach users』 demand on waveforms。 |
| |
Pulse
Generation
|
| G5100A
can generate variable-edge-time pulses up to
10MHz. With variable period, pulse width and
amplitude the G5100A is perfectly suited to
applications requiring a flexible pulse signal。 |
| |
Custom
Waveform Generation
|
| G5100A
can generate complex custom waveforms. With
14-bit resolution, and 125 MSa/s sampling rate,
the G5100A offers users the flexibility to
create waveforms. It also allows users to store
up to 5 waveforms, 4 (4 x 256K Points) in
nonvolatile memory and 1 in volatile memory. |
| |
Waveform
editor Wavepatt®
|
| Picotest
Waveform Editor Software Wavepatt® allows users
to create, edit and download complex waveforms.
In addition, users can retrieve waveforms from
Agilent Oscilloscope MSO 8104 by using the
Wavepatt®。 |
 |
| |
Graph mode
|
| In graph
mode, user can easily visual verify the signal
settings. Also, user can always see the selected
function on the upper left corner of display.
|
 |
| |
Data
Transmission via Pattern Out
|
| User can
use Wavepatt® to creat and store 16-bit data in
G5100A. The data can be transmited via Pattern
Out from G5100A rear panel as source for
control.
 |
| |
User
Friendly Operation
|
The
front-panel operation of G5100A is simple and
user friendly. Users can enter all functions
with a single key or two, and use knob or
numeric keypad to adjust frequency, amplitude,
offset and other parameters. Otherwise, users
can also directly input voltage values in Vpp,
Vrms, dBm or high & low levels. Timing
parameters can be entered in Hertz (Hz) or
second.
 |
| |
Easy-to-use
Functions
|
Users can
easily use the following functions.
- Internal
modulations of AM, FM, PM (PSK), FSK &
PWM for waveform adjustment.
- Built-in
linear and logarithmic sweeps from 1ms
to 500 s.
- The burst mode
has a selectable number of cycles per
period of time.
- Using remote
control via USB, LAN or Opt. GPIB
interface.
- The
programmability by SCPI commands under
the remote control connection.
- Precise phase
adjustments and calibrations can be done
from the front panel or via a PC.
 |
| |
Support
External Frequency Input and Output
|
The
G5100A external frequency reference allows users
synchronizing to an external 10 MHz clock, to
another G5100A, or any other unit which can
support 10-MHz-frequency-input function。
 |
| |
G5100A
Specifications:
|
 |
